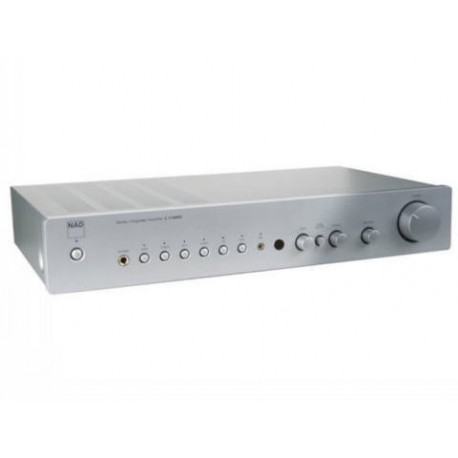

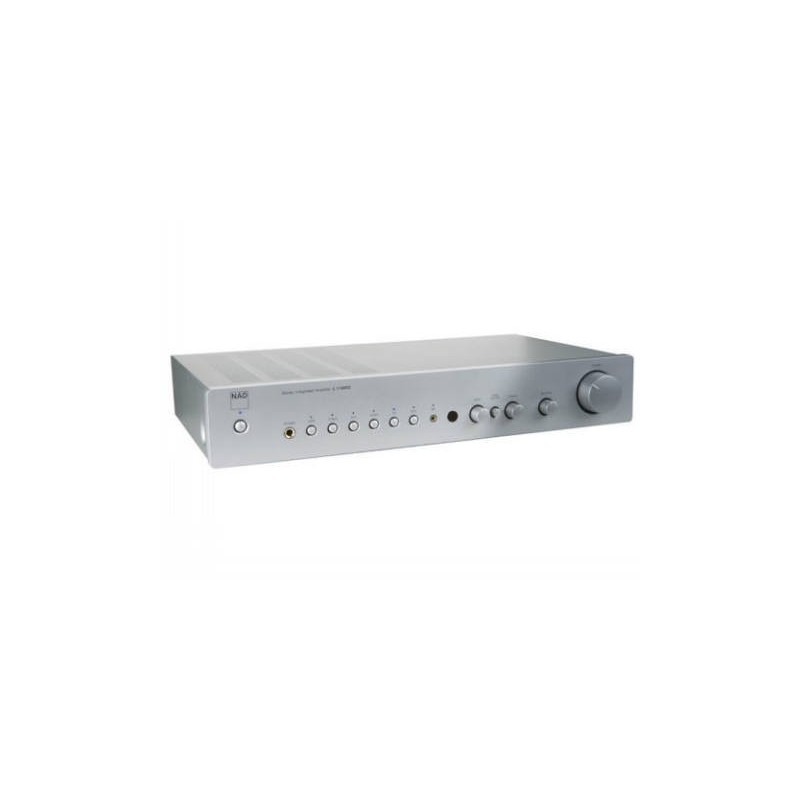

Nad C315Bee Titanium
New product
Stereo Integrated amplifier 40 + 40 watt rms on 4 and 8 Ohm
For more information contact us
More info
Line level inputs (Disc , CD, Video , Aux, Tuner , Tape ) measured at Speakers Output
Input impedance (R and C) 50kΩ + 100pF
Input sensitivity (ref. rated power) 200mV
Maximum input signal 7V
Line level outputs
Output impedance Tape Source Z + 600Ω
Tone controls
Treble ±5dB at 10kHz
Bass ±8dB at 100Hz
Continuous output power into 8Ω 2 40W (16dBW)
Rated distortion (THD 20Hz - 20kHz) 0.02%
Clipping power (maximum continuous power per channel 4Ω and 8Ω) 40W
IHF Dynamic headroom 8Ω 45W, +16.5dB
4Ω 60W, +17.8dB
IHF dynamic power (maximum short term power per channel) 8Ω 90W (19.5dBW)
4Ω 120W (20.8dBW)
Damping factor (ref. 8Ω, 1kHz) >200
Voltage gain 39dB
Signal/noise ratio, A-weighted 1 ref. 1W 95dB
THD + Noise 3 <0.02%
SMPTE IM 4 <0.02%
IHF IM 5 <0.01%
Headphone output impedance 68Ω
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 6 Net 435 x 70 x 242mm
Gross 435 x 80 x 292mm
Net weight 5.25kg (11.5lb)
Shipping weight 6.5kg (14.3lb)
Input impedance (R and C) 50kΩ + 100pF
Input sensitivity (ref. rated power) 200mV
Maximum input signal 7V
Line level outputs
Output impedance Tape Source Z + 600Ω
Tone controls
Treble ±5dB at 10kHz
Bass ±8dB at 100Hz
Continuous output power into 8Ω 2 40W (16dBW)
Rated distortion (THD 20Hz - 20kHz) 0.02%
Clipping power (maximum continuous power per channel 4Ω and 8Ω) 40W
IHF Dynamic headroom 8Ω 45W, +16.5dB
4Ω 60W, +17.8dB
IHF dynamic power (maximum short term power per channel) 8Ω 90W (19.5dBW)
4Ω 120W (20.8dBW)
Damping factor (ref. 8Ω, 1kHz) >200
Voltage gain 39dB
Signal/noise ratio, A-weighted 1 ref. 1W 95dB
THD + Noise 3 <0.02%
SMPTE IM 4 <0.02%
IHF IM 5 <0.01%
Headphone output impedance 68Ω
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 6 Net 435 x 70 x 242mm
Gross 435 x 80 x 292mm
Net weight 5.25kg (11.5lb)
Shipping weight 6.5kg (14.3lb)
